One of the most common questions buyers and builders ask about interlocking roof tiles is simple:
Do interlocking roof tiles leak?
The short answer is that an interlocking roof tile system can provide effective water management, but no roofing tile should be considered completely leak-proof on its own.
Roof leakage is usually related to the entire roofing system rather than the tile itself.
Tile profile, roof pitch, installation quality, underlayment, flashing, fasteners, valleys, ridges, roof penetrations, and local weather conditions can all influence whether a roof remains watertight.
For builders, contractors, and importers sourcing interlocking roof tiles, understanding these factors is more useful than simply asking whether one product is “waterproof.”
This article explains the common causes of leakage, how interlocking tiles manage rainwater, and what buyers should check before purchasing.
How Do Interlocking Roof Tiles Prevent Water From Entering?
The basic principle of an interlocking roof tile is to create controlled overlaps between adjacent tiles.
Instead of relying on a single flat surface to stop rainwater, the roofing system uses the tile’s shape and overlapping joints to guide water down the roof.
Depending on the specific product design, tiles may interlock:
- Horizontally
- Vertically
- Along multiple edges
- Through formed profiles or channels
The exact design varies between manufacturers.
When correctly installed, the overlapping areas help reduce the chance of water traveling directly through the joints.
However, the interlocking mechanism is only one part of the water-management system.
Rain can also enter through:
- Roof valleys
- Ridge lines
- Hip joints
- Roof penetrations
- Flashing
- Damaged tiles
- Incorrectly installed fasteners
- Poorly sealed transitions
This is why a properly designed roof needs to be considered as a system, not simply a collection of individual tiles.
Can Interlocking Roof Tiles Leak?
Yes, an interlocking roof can develop leaks.
But the important question is why.
A properly specified and installed roofing system should be designed to manage normal rainfall effectively. When leakage occurs, the cause may have little to do with the basic interlocking concept.
Common causes include:
- Incorrect roof pitch
- Poor installation
- Incorrect tile overlap
- Damaged or deformed tiles
- Poor valley detailing
- Improper flashing
- Roof penetrations
- Loose or incorrectly positioned fasteners
- Inadequate underlayment
- Severe weather beyond the system’s design conditions
Understanding these causes helps builders prevent problems before they occur.
1. Incorrect Roof Pitch
Roof pitch is one of the most important factors in preventing water-related problems.
A pitched roof allows gravity to move rainwater toward the eaves and drainage system.
If the roof slope is too low for the selected tile system, water may move more slowly and have more opportunity to enter through overlaps or other joints.
This is why manufacturers normally specify a recommended or minimum roof pitch for their products.
Before selecting an interlocking roof tile, confirm:
- Recommended minimum pitch
- Suitable roof configurations
- Underlayment requirements
- Special requirements for low-slope sections
Do not assume that a tile suitable for a steep villa roof can automatically be used on a low-pitched roof.
For B2B buyers, this specification should be confirmed before ordering.
2. Incorrect Tile Overlap
The overlapping relationship between tiles is fundamental to an interlocking roof.
If tiles are installed incorrectly, the intended water path may not work as designed.
Problems can occur when:
- Tiles are not aligned correctly
- Overlap is insufficient
- Tiles are forced into position
- Rows are not straight
- The wrong accessory is used
- Different tile profiles are mixed
For a large project, even a small installation inconsistency can become a recurring problem across hundreds of square meters.
This is why installers should follow the manufacturer’s installation instructions rather than relying on general roofing practices.
ROOFGLORY can provide product and installation information for buyers sourcing its roofing products so that contractors understand how the selected profile is intended to be installed.
3. Poor Installation Is a Major Risk
A high-quality roofing product can still perform poorly if it is installed incorrectly.
This is particularly relevant for imported roofing materials.
The manufacturer may have extensive experience with the product, while the local contractor may be installing that particular profile for the first time.
Before starting a major project, the installer should understand:
- Correct tile orientation
- Starting point
- Overlap direction
- Fastener position
- Cutting method
- Ridge installation
- Hip installation
- Valley detailing
- Flashing
- Roof penetration details
For large developments, it can be worthwhile to create a standard installation procedure before construction begins.
This ensures that different crews follow the same method.
4. Roof Valleys Need Special Attention
Roof valleys are among the areas most likely to experience water-management problems.
A valley collects water from two roof slopes and directs it toward the drainage area.
During heavy rainfall, the amount of water moving through a valley can be much greater than on an individual section of roof.
Interlocking roof tiles therefore require appropriate valley detailing.
Depending on the roofing system, this may involve:
- Valley flashing
- Underlayment
- Open valley construction
- Closed valley construction
- Specialized valley components
The exact method depends on the product and local construction requirements.
Builders should not assume that the main tile specification automatically determines the correct valley solution.
5. Ridges and Hips Can Also Cause Leakage
The highest points of a pitched roof require different detailing from the main roof field.
Ridges run along the top of the roof, while hips run diagonally from the ridge toward the corners.
These areas involve multiple tile intersections and therefore require appropriate components and installation.
Potential problems include:
- Poorly fitted ridge components
- Inadequate ventilation
- Incorrect fasteners
- Gaps between components
- Improper flashing
- Excessive use of sealant as a substitute for proper detailing
A complete roofing system should therefore include appropriate ridge and hip components.
When purchasing interlocking roof tiles wholesale, importers should ask the manufacturer for the complete accessory system rather than buying only the main tiles.
6. Roof Penetrations Are Common Leakage Points
Chimneys, skylights, vents, pipes, antennas, and other penetrations create openings in the roof.
Even if the main interlocking tile field is installed correctly, poor detailing around a penetration can allow water to enter.
The solution is generally not to add large amounts of sealant.
Instead, the penetration should be properly integrated into the roof’s flashing and waterproofing system.
For villa projects, this is particularly important because architectural roofs may include multiple skylights, dormers, chimneys, and ventilation elements.
A simple roof with few penetrations is generally easier to detail than a highly complicated roof.
7. Damaged Tiles Can Allow Water In
Interlocking roof tiles can be damaged during:
- Transportation
- Handling
- Installation
- Maintenance
- Severe weather
A cracked, deformed, or improperly fitted tile can compromise the intended overlap.
This is why inspection should take place during installation.
If a tile is visibly damaged, it should not simply be installed because the project is short of material.
For importers, packaging quality therefore matters indirectly to waterproofing performance.
Good export packaging helps reduce the possibility of damage before the products reach the construction site.
8. Fasteners Matter More Than Many Buyers Expect
Fasteners secure the tiles to the roof structure, but incorrectly installed fasteners can also create problems.
Potential issues include:
- Incorrect fastener type
- Incorrect position
- Over-tightening
- Under-tightening
- Damaged washers
- Poor penetration
- Corrosion
The correct fastener specification depends on the tile material, substrate, environmental conditions, and applicable installation requirements.
In coastal or high-humidity areas, corrosion resistance becomes especially important.
Importers should ask the manufacturer which fasteners are recommended for the selected roofing system.
9. Underlayment Provides an Important Secondary Layer
Roof tiles should not always be treated as the only line of defense against water.
An underlayment can provide an additional layer of protection beneath the tiles.
It can become particularly important when:
- Heavy rain is common
- Wind-driven rain occurs
- The roof has complicated geometry
- The project requires additional waterproofing protection
- Local building requirements specify a particular underlayment
The exact underlayment should be selected according to the roofing system and local construction requirements.
For B2B buyers, the key point is simple:
Do not evaluate the waterproofing performance of the roof tile separately from the rest of the roof assembly.
10. Wind-Driven Rain Is Different From Normal Rain
A roof that performs well during ordinary rainfall may experience greater challenges when rain is accompanied by strong wind.
Wind can force water upward, sideways, or into joints that normally receive little direct exposure.
This is particularly relevant in:
- Tropical regions
- Coastal areas
- Typhoon-prone areas
- Hurricane-prone regions
- Open terrain
For projects in these environments, builders should consider both the roofing product and the fixing system.
Questions for the manufacturer may include:
- What installation method is recommended for high-wind areas?
- Are additional fasteners required?
- Are edge zones treated differently?
- What product testing is available?
- What local wind-load requirements need to be considered?
The roofing system should then be evaluated by the project engineer against the applicable local requirements.
What Happens During Heavy Rain?
The interlocking structure is designed to help control water movement across the roof.
Rain reaches the upper tile, flows toward the lower portion, and continues down the roof surface.
At the overlapping areas, the tile profile helps direct water away from the joint.
The roof’s slope then allows gravity to continue moving the water toward the eaves.
A simplified water path is:
Rain → Upper tile → Overlap/interlocking area → Lower tile → Eave → Drainage system
The objective is not to create an absolutely sealed surface.
Instead, the roof is designed to control and redirect water.
This distinction is important when evaluating any pitched roofing system.

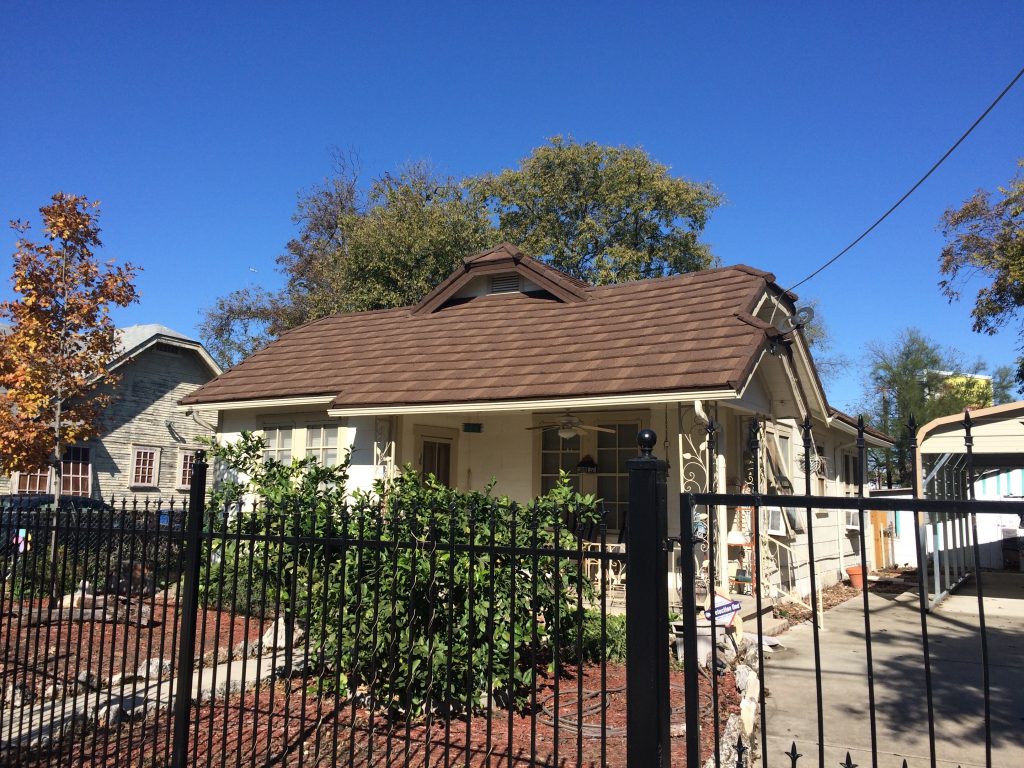

Does Stone-Coated Metal Roofing Leak Less?
Stone-coated metal roofing is often considered by builders looking for a lightweight alternative to traditional tile roofing.
However, it would be misleading to say that a stone-coated metal roof can never leak.
Its performance depends on the complete system.
Important factors include:
- Tile profile
- Interlocking design
- Roof pitch
- Coating and substrate
- Installation
- Fasteners
- Flashing
- Underlayment
- Roof detailing
The advantage of a metal roofing system should therefore be evaluated as part of the complete construction assembly.
For buyers considering stone-coated interlocking roof tiles, the manufacturer’s technical specifications and installation instructions are more useful than a simple claim that the product is “100% waterproof.”
How to Prevent Interlocking Roof Tile Leaks
The most effective approach is to prevent problems during design and installation rather than trying to repair them later.
Choose the Correct Roof Pitch
Confirm that the roof slope is suitable for the selected tile system.
Follow the Manufacturer’s Installation Method
Do not improvise the overlap or fixing method.
Use Appropriate Underlayment
Where required, install the specified secondary waterproofing layer.
Detail Valleys Carefully
Make sure water can move through valleys without backing up beneath the tiles.
Install Ridge and Hip Components Correctly
These areas require specialized detailing.
Check Roof Penetrations
Pay particular attention to skylights, chimneys, pipes, and vents.
Use the Correct Fasteners
Follow the manufacturer’s fixing recommendations.
Inspect During Installation
Replace damaged tiles rather than installing them.
Inspect After Severe Weather
Strong storms can move or damage roofing components even when the original installation was correct.
How Should Importers Evaluate a Tile’s Waterproofing Performance?
If you are purchasing interlocking roof tiles wholesale, do not ask the manufacturer only:
“Are these tiles waterproof?”
Instead, ask more specific technical questions.
Product
- What is the interlocking design?
- What is the recommended minimum roof pitch?
- How are the tiles overlapped?
- What materials are used?
Installation
- What fixing system is required?
- How should valleys be constructed?
- How are hips and ridges installed?
- What underlayment is recommended?
Testing
- What water-related or weather-resistance testing has been conducted?
- What standards does the product comply with?
- Are technical reports available?
Climate
- Is the product suitable for heavy rainfall?
- What installation requirements apply to high-wind areas?
- Are there specific recommendations for coastal environments?
The answers will give you a much better understanding of the product than a simple “yes” or “no.”
What Should Builders Check Before Installing Interlocking Roof Tiles?
Before the first tile is installed, review the roof structure and installation plan.
Roof
- Is the roof pitch suitable?
- Is the roof structure prepared correctly?
- Are the roof planes properly aligned?
Waterproofing
- Is the underlayment installed correctly?
- Are valleys properly detailed?
- Are flashing locations identified?
Tiles
- Are the correct profiles being used?
- Are tiles from the same approved specification?
- Are damaged pieces removed?
Fixing
- Are the correct fasteners available?
- Are fixing locations clearly defined?
- Are additional fixings required in high-wind areas?
Accessories
- Are ridge, hip, valley, and edge components available?
- Are they compatible with the main tile?
A short pre-installation check can prevent much more expensive problems later.
What If an Interlocking Roof Starts Leaking?
If a completed roof develops a leak, do not immediately assume that the tile itself is defective.
Start by identifying where water is entering.
The visible ceiling stain may not be directly below the actual entry point.
Inspect:
- Roof penetrations
- Valleys
- Ridge and hip areas
- Flashing
- Damaged tiles
- Tile overlaps
- Fasteners
- Underlayment
- Roof edges
Water can travel along the underside of the roof before reaching the interior.
For serious or persistent leakage, a qualified roofing professional should inspect the complete assembly.
Replacing individual tiles without identifying the source may only provide a temporary solution.
How Manufacturers Can Help Reduce Leakage Problems
A roofing manufacturer has responsibilities beyond producing the main tile.
Good technical support can help buyers understand:
- Product limitations
- Recommended roof pitch
- Installation sequence
- Accessory selection
- Fixing requirements
- Packaging
- Storage
- Maintenance
This is especially important for international buyers.
A Chinese manufacturer may supply products to contractors who have never installed that particular profile before.
Clear installation documentation can therefore be an important part of the product package.
At ROOFGLORY, B2B buyers can discuss product specifications and installation requirements before placing an order. This allows the roofing system to be evaluated according to the project’s roof design, climate, and intended application rather than simply selecting a tile from a catalog.
Why Waterproofing Should Be Discussed Before Ordering
For importers, leakage problems can become expensive after the products arrive.
If the wrong product has been selected, replacing a container of roofing materials is obviously much more difficult than changing the specification before production.
Therefore, waterproofing-related questions should be discussed during the quotation stage.
Before ordering, confirm:
- Roof pitch
- Climate
- Product profile
- Effective coverage
- Installation method
- Underlayment
- Flashing requirements
- Ridge and hip components
- Valley details
- Fasteners
This is one reason ROOFGLORY encourages buyers to provide project information when requesting roofing products.
The more information available before production, the easier it is to identify the appropriate product specification.
Interlocking Roof Tiles: Waterproofing Checklist for Importers
Before purchasing, use this checklist:
| Item | What to Confirm |
|---|---|
| Roof pitch | Meets product requirements |
| Tile profile | Correct model and specification |
| Effective coverage | Confirm actual coverage per m² |
| Overlap | Follow manufacturer’s installation method |
| Underlayment | Confirm recommended system |
| Valleys | Confirm compatible detailing |
| Ridge & hips | Confirm matching accessories |
| Fasteners | Correct type and fixing method |
| Climate | Suitable for local conditions |
| Wind | Check local wind requirements |
| Samples | Approve before mass production |
| Installation | Obtain technical instructions |
This checklist can also be used when comparing different interlocking roof tile manufacturers.
Final Thoughts
So, do interlocking roof tiles leak?
They can, but leakage should not automatically be attributed to the tile itself.
A roofing system’s water performance depends on the interaction between the tile profile, roof pitch, overlaps, underlayment, flashing, accessories, fasteners, installation quality, and local weather conditions.
For builders, the most important lesson is to treat interlocking roof tiles as part of a complete roofing system.
For importers, the same principle applies during procurement.
Instead of asking a manufacturer:
“Will your interlocking roof tiles leak?”
ask:
“What roof pitch, installation method, waterproofing layers, accessories, and fixing system are required for this product in my market?”
That question produces much more useful information.
If you are sourcing interlocking roof tiles from China, ROOFGLORY can provide product specifications, samples, packaging information, and technical details to help you evaluate the roofing system before placing a bulk order.
Whether your project involves villas, residential developments, or distribution, provide your destination market, roof type, approximate quantity, and preferred tile style so the appropriate product configuration can be discussed before production.
